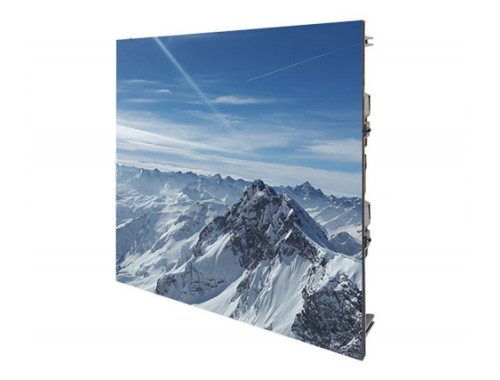

MW7840-FO-C Uniview Наружный дисплей видеостены
Наши преимущества
Официальный дистрибьютор
Отправка товара по Казахстану
Техническая поддержка
Скидки партнерам и реселлерам
Высокое качество продукции
Персональный менеджер
| Model | MW7840-FO-C | MW7850-FO-C | MW7866-FO-C | MW7880-FO-C | MW78A0-FO-C |
| Module | |||||
| Pixel pitch | P4 | P5 | P6.67 | P8 | P10 |
| Resolution (W*H) | 80*80 | 64*64 | 48*48 | 40*40 | 32*32 |
| Dimensions (mm) | 320*320 | ||||
| Cabinet | |||||
| Dimensions (mm) | 960*960*110 | ||||
| Resolution (W*H) | 240*240 | 192*192 | 144*144 | 120*120 | 96*96 |
| Weight (kg/pcs) | 40±1 | ||||
| Pixel density (pitch/m²) | 62500 | 40000 | 22500 | 15625 | 10000 |
| Material | Die-cast aluminum | ||||
| Optical | |||||
| Brightness (nits) | 5500 | ||||
| Contrast ratio | 3000:1 | ||||
| Color temperature (K) | 3500 to 9300 | ||||
| Viewing angle (H/V) | 120°/120° | ||||
| Processing performance | |||||
| Grayscale (bit) | 14 | ||||
| Scan (S) | 10 | 8 | 6 | 5 | 2 |
| Refresh rate (Hz) | 3840 | ||||
| Single pixel brightness correction | Support | ||||
| Single pixel color correction | Support | ||||
| Center distance deviation of LED | <3% | ||||
| Brightness uniformity | ≥95% | ||||
| Color uniformity (Cx,Cy) | ±0.003 | ||||
| Electrical | |||||
| Average power consumption (W/m²) | 320 | ||||
| Max. power consumption (W/m²) | 950 | ||||
| Power supply (V) | AC 100 to 240 | ||||
| Drive mode | Constant current driving | ||||
| General | |||||
| Maintenance mode | Front/rear maintenance | ||||
| Ingress protection | Front/rear : IP65/IP43 | ||||
| Operating temperature | -20°C to 50°C | ||||
| Operating humidity | 10% to 90% RH non-condensing | ||||
| Storage temperature | -40°C to 60°C | ||||
| Storage humidity | 10% to 95% RH non-condensing | ||||
| LED lifetime (h) | 50000 | ||||
| Certifications | RoHS/CE/FCC | ||||
